Active Wheelchair the Kuschall Compact - 2.0

Active Wheelchair the Kuschall Compact - 2.0


  • $3,850.00

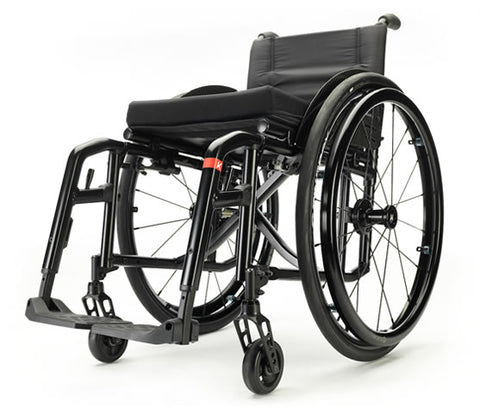

Active Wheelchair the Kuschall Compact

Lightweigt foldig wheelchair


The Kuschall Compact is the answer if you’re looking for a reliable, quality folding wheelchair with outstanding functionality. It utilises the traditional cross folding style for effortless folding. Hydroforming allows for smaller, more lightweight tubes and therefore an overall lighter frame that is still robust with a smooth driving performance. The Compact 2.0 also gives you the option of fixed or swing-away leg rests for a true merge of versatility and performance.

The Compact is the absolute standard for reliability, high-class quality, and outstanding functionality. Küschall Compact can easily be adapted to suit your needs and lifestyle, whether you need a higher level of configurability or an active product, the Compact is right for you! This traditional style, cross folding wheelchair can be effortlessly folded. The lightweight frame is robust giving you a smooth driving performance.


Your needs drive our innovations. The more control you have, the better your driving experience will be. Our engineers have designed this intuitive castor housing adjustment, immediate in the regulations and excellent in keeping the direction steady. Never lose sight of the goal with Keep On Track.


Hydroforming simply added more to the DNA of the Compact range. While versatility and comfort remain unaltered, the profile of hydroformed tubes offers more stiffness where necessary and contemporary appeal to the overall look.



PRICE'S Starting from $3850 - Excluding shipping

Download and fill in the Compact Order Form

Compact Sales Brochure

Kuschall Sales Brochure

As the Compact is a custom made wheelchair designed specifically to you, we strongly recommend that the chair order is completed in conjunction with a qualified Physiotherapist or Occupational Therapist, as we will not accept any liability for incorrect measurements / dimensions or requirements. If you do not have a current Physiotherapist or Occupational Therapist we are happy to recommend one.

Once complete please email back to and we will come back with a formal quote for you within 24hrs.



Seat width:

280 – 500 mm in increments of 20 mm

Seat depth:

320 – 500 mm in increments of 20 mm

Knee-to-heel lenght:

200 - 510 mm in increments of 10 mm

Backrest height:

300 – 510 mm in increments of 15 mm

Backrest angle:

82° / 86° / 90° / 94° / 98° / 102°

Seat height:

front: 370 – 530 mm rear: 360 – 500 mm increments of 10 mm

Frame angle:

70º / 80º Straight or tapered

Total width:

Seat width + 160 mm

Total width folded:

approx. 290 mm

Total length:

70°: approx. 870 – 1220 mm 80°: approx. 850 – 1200 mm

Max. safe slope:

0º / 3º

Total weight unloaded:

approx. 10.5 kg (swing away) approx. 9.6 kg (fixed frame)

Transport weight:

approx. 7.8 kg (swing away) approx. 6.7 kg (fixed frame)

Max. user weight:

130 kg

*All measurements and weights indicated are based on seat width 400 mm and seat depth 400 mm in the lightest and most compact configuration. Weight and measurements can change with the different configurations.
